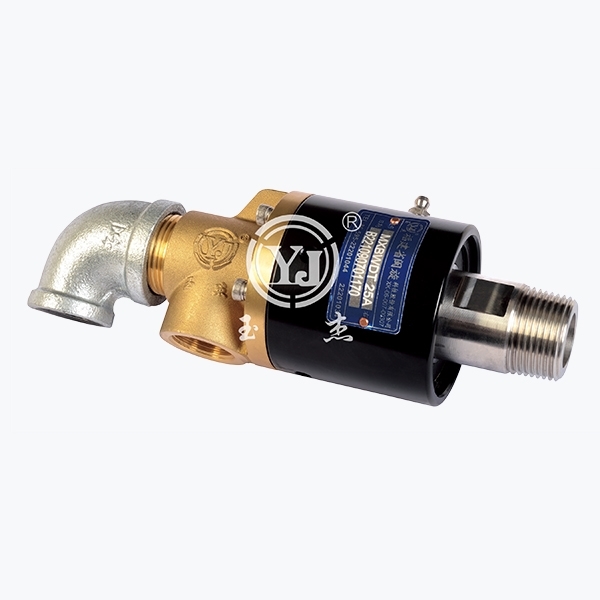

    MXB Rotary joint

    Model：MXB
    Outer pipe：Thread connection or flange connection
    Feature：Plane sealing technology; Full flow area,Low pressure drop; Two-piece housing,on-machine seal replacement; Ceramic and carbon graphite seal faces; External loaded springs,Uniform seal loading; Bearing isolation system available,Increased bearing protection.

    Technical Parameter：
    Media Water、Oil
    Max.Temperature ≤300℃（Oil）、≤120℃（Water）
    Max.Pressure ≤1.0MPa
    Max.Speed

    15A-80A ≤ 3000rpm


    Product consultation Back to list

    Sales Service Hotline：

    0595-8686 1188




    Model K I O S1 d L1 L2 L3 L5 L6 L7 L8 M N H SW Flange outer tube size control table
    A B C D
    20A R3/4" Rc3/4" Rc1/2" 12 17 42 132 27 170 184 121 / M6 / / 26 26 11 24 16
    25A R1" Rc3/4" Rc1/2" 16 21 42 138 29 180 195 124 / M6 / / 32 34 12 32 18
    32A R1-1/4" Rc1-1/4" Rc1/2" 20 30 50 160 34 213 227 141 / M8 / / 41 40 13 38 20
    40A R1-1/2" Rc1-1/2" Rc3/4" 25 36 57 176 37 233 252 155 168 M6 10 37 46 47.8 13 45 20
    50A R2" Rc1-1/2" Rc1" 32 46 70 196 34 263 287 175 189 M8 10 44 57 60 16 57 24

    We offer customized products if special sizes.
    Specifications are subject to change without notice.
